| Wiping Element |
Natural rubber compound |
Good elasticity, conformability, and wiping quality when correctly compounded. |
Suitable for general temperate climates and applications where smooth glass contact is the main priority. |
Can be more sensitive to ozone, ultraviolet exposure, heat, and chemical contamination than some synthetic compounds. Confirm UV, ozone, and aging test results. |
| Wiping Element |
Synthetic rubber compound |
Formulation can be adjusted for improved resistance to heat, oxidation, ozone, and weathering. |
Useful for hot, sunny, polluted, or highly variable climates. |
Performance depends strongly on the polymer blend and surface treatment. Request compound specifications rather than relying only on the term “synthetic rubber.” |
| Wiping Element |
Silicone wiping element |
Maintains flexibility across a broad temperature range and generally offers strong resistance to ultraviolet radiation and ozone. |
Well suited to high-sunlight regions, cold-weather markets, and vehicles exposed to outdoor storage. |
May have different friction, noise, and water-repellent behavior compared with conventional rubber. Validate compatibility with the glass coating and washer-fluid formulation. |
| Surface Treatment |
Graphite or low-friction coating |
Reduces friction between the wiping edge and glass, which can help limit chatter, noise, and edge wear. |
Beneficial in dry dust, light frost, and frequent-use conditions where friction is a major wear factor. |
Coating uniformity and adhesion are important. Poorly controlled coatings may wear unevenly or leave residue on the glass. |
| Frame Design |
Conventional articulated frame with multiple pressure points |
Distributes contact force through several joints and can adapt well to many curved windshields. |
Practical for replacement markets with varied vehicle designs and moderate weather conditions. |
More hinges and exposed parts can collect ice, dirt, or salt. Corrosion-resistant metal and protected joints improve service life. |
| Frame Design |
Flat beam blade with a continuous spring strip |
Provides more uniform pressure along the wiping edge and has fewer exposed moving joints. |
Performs well in snow, ice, dust, and high-speed driving when the curvature is correctly matched to the windshield. |
Vehicle-specific curvature and connector quality are critical. An incorrect beam profile may cause streaking or inadequate end contact. |
| Frame Design |
Hybrid construction with a protected frame and aerodynamic cover |
Combines pressure distribution with improved shielding against wind lift, dirt, and some weather exposure. |
Suitable for high-speed routes, mixed climates, and markets where both aerodynamic stability and contamination resistance matter. |
Usually has more components than a basic frame, so assembly precision and connector strength should be checked. |
| Aerodynamics |
Integrated spoiler or wind deflector |
Uses airflow to help maintain blade contact with the windshield and reduce lift at higher speeds. |
Helpful for motorways, coastal winds, and vehicles regularly operated at higher speeds. |
Shape and orientation must match the blade’s primary wiping direction. A poorly designed spoiler can increase noise or create uneven pressure. |
| Weather Protection |
Covered joints and end caps |
Reduce exposure of hinges, springs, and connectors to water, road salt, sand, and ice. |
Particularly valuable in winter-salt regions, dusty areas, and locations with frequent rain. |
Drainage must remain adequate. Sealed areas that trap water or dirt may accelerate corrosion rather than prevent it. |
| Structural Material |
Coated or corrosion-resistant spring steel |
Maintains restoring force and blade curvature more reliably when exposed to moisture and road salt. |
Suitable for humid, coastal, snowy, and de-icing-salt environments. |
Inspect coating coverage, edge protection, salt-spray performance, and resistance to permanent deformation. |

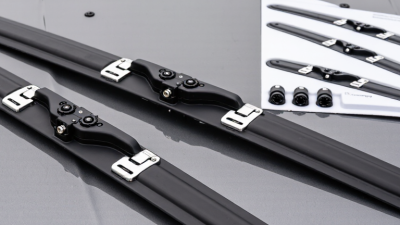

| Connector System |
Vehicle-specific adapter with positive locking |
Improves retention and reduces the risk of looseness, vibration, or detachment during operation. |
Important for global distribution because connector types and arm geometries vary by vehicle market. |
Confirm arm compatibility, locking feedback, adapter material strength, and installation instructions for each target vehicle group. |
| Cold-Climate Design |
Flexible low-temperature compound with ice-resistant geometry |
Helps the wiping edge remain flexible and limits ice accumulation around exposed joints. |
Recommended for sub-zero conditions, freezing rain, snow, and overnight outdoor parking. |
Cold-weather performance should be verified through low-temperature flexibility, ice-accumulation, and repeated-cycle testing. |
| Hot-Climate Design |
UV- and ozone-resistant compound with heat-stable backing |
Slows hardening, cracking, and loss of elasticity caused by sunlight, oxygen, and elevated temperatures. |
Well suited to tropical, desert, and high-altitude markets with intense solar exposure. |
Ask for accelerated UV and ozone aging results, while recognizing that laboratory aging does not exactly predict every field condition. |
| Testing and Quality |
Combined validation: wiping cycles, abrasion, UV, ozone, temperature, salt spray, and connector pull testing |
Evaluates both the wiping edge and the complete blade assembly under different failure mechanisms. |
Supports more reliable performance across multiple export regions and operating conditions. |
Test results should state the sample design, cycle count, temperature, exposure conditions, acceptance criteria, and test method. A single durability number is not sufficient for global purchasing. |
